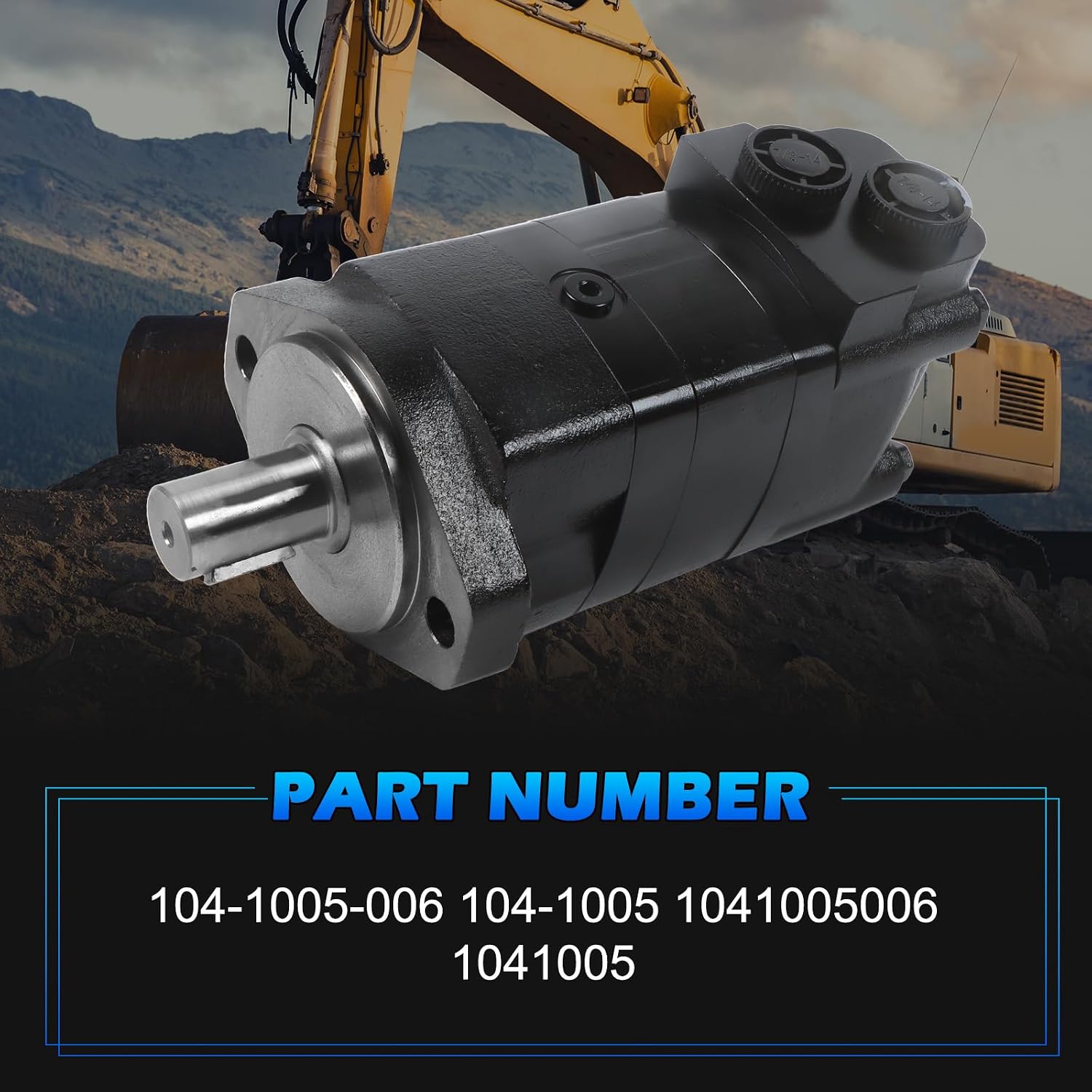

104-1005-006 Hydraulic Motor Replacement for Eaton Char-Lynn 2000 Series | Cast Iron High Torque Displacement 195cc/r Maximum Pressure 240BAR 2 Bolt Flange Mount
US$88.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by creativegovit.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$88.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by creativegovit.com
Free 30-day returns Details
Product details
| Management number | 247605417 | Release Date | 2026/08/16 | List Price | US$88.00 | Model Number | 247605417 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【OE Exact Match & Wide Compatibility 】 OE Part Numbers:104-1005-006 104-1005. 1:1 exact match for Eaton Char-Lynn 2000 Series, no modifications needed—direct drop-in replacement, no mismatch hassle.
- 【Stable Output Performance】Suitable for various applications:Displacement (m³): 195; Maximum working pressure (BAR): 240; Recommended flow rate (LPM): 75; Maximum speed (RPM): 577; Maximum torque (N.m): 625; Output shaft: Straight shaft; Mounting flange: Diamond 2-hole; Rotation direction: Clockwis.Utilizing an advanced gear design, it achieves stable high torque output at low speeds, effectively avoiding power decay and stalling during heavy-load operation.
- 【High Volumetric Efficiency & Anti-Heat Degradation Design】Equipped with an advanced gear ring structure, it boasts a volumetric efficiency of up to 96%, resulting in extremely low energy loss. Even under continuous high-load conditions (such as zero-turn lawnmowers and snowplows), it maintains stable torque and controllable temperature rise, preventing power decay or seal failure due to overheating, significantly reducing equipment downtime.
- 【Leak-Free Design & All-Weather Durability】 The housing is made of precision cast iron in one piece, with a black anti-rust paint coating for corrosion resistance and impact resistance. SAE O-ring seals with dust caps are standard at the inlet and outlet, completely eliminating external leakage. Each motor undergoes 100% pressure testing before leaving the factory to ensure leak-free operation under harsh conditions.
- 【Professional Installation Guide (Must Read)】⚠️ Before installation, please verify that your equipment part number matches this motor. If in doubt, please send us your model number or original factory code, and we will confirm it for you. Before connecting the new motor, thoroughly flush the hydraulic lines to remove impurities or water from the old oil. Apply clean hydraulic oil to the O-rings; tighten the connections and then lock them to the manufacturer's specified torque. It is strongly recommended to replace the hydraulic oil filter and fluid simultaneously, which can extend motor life by more than 30%.
| ASIN | B0DXVJZVWL |
|---|---|
| Model | 104-1005-006 1041005006 |
| Brand Name | Zachager |
| Model Name | Hydraulic Motor |
| Item Weight | 11.06 kg |
| Part Number | 104-1005-006 1041005006 |
| Manufacturer | Zachager |
| Number of Items | 1 |
| Included Components | 1PCS Hydraulic Motor 104-1005-006 1041005006 |
| Warranty Description | six months |
